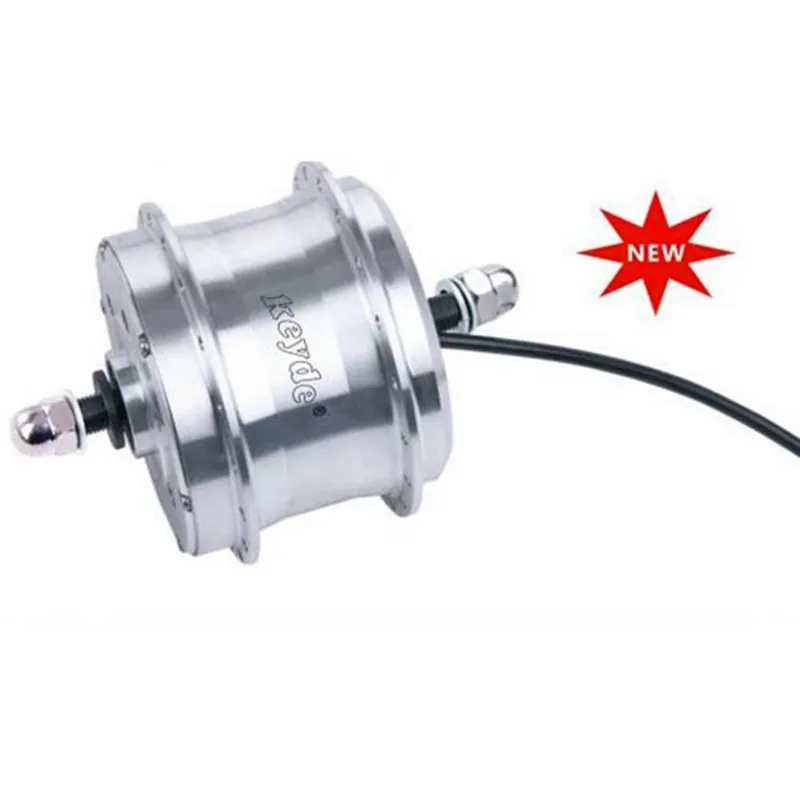

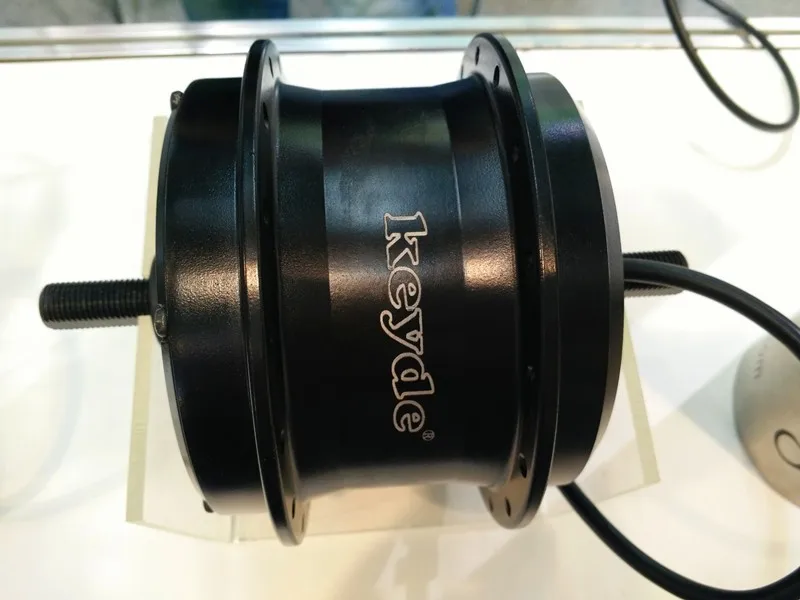

V1 2Kg ultra-light small 110mm Max 24V/33V/36V 500W V/Disc brake front no-hall hub motor for electric bike&electric bicycle

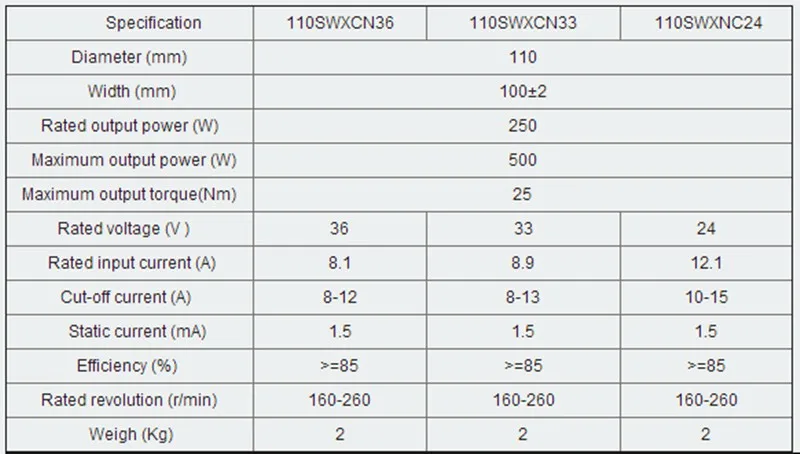

Design Brushless

Motor Type Brushless Gear Hub Motor

Brand Name suringmax

Wattage 201 - 300w

Voltage 24v/33v/36v

Motor type Front motor

Rated voltage 24V/33V/36V

Rated power 250W

Rated revolution (RPM) 160-260

Dropout 100mm

Reduction ratio 13.5

Efficiency >85%

Brake type V brake/Disc brake

Weight 2Kg

Hall sensor No hall sensor

*Notice:The motor doesn't have hall sensors,it is a No-hall motor! Front the drive disc brake motor 110mm diameter 1.Bicycle'smodels and wheel size: Bicycle's models:mountain bike, city car, folding car ,and so on; Wheel size:16 inch, 20 inch, 22 inch, 24 inch, 26 inch 700C, 29 inch,and so on. 2.Number of spoke holes: Can be customized:20,24,28,32,36 3.Speed: The motor's rated RPM is 160-260rpm, when you order it, please tell us the speed of the motor which you need, then we will make suitable speed for you. 4.Rim If you don't need me to provide rim for you, you only need change your old spoke,then lace the motor into your old rim. If you need the whole wheelwith motor, rim ,and spoke, we will lace the motor into rim for you(please contact with us, the price is only for the motor) 5.Spoke: If you need spokes, plase tell us the length of spoke 6.Installation: We will provide you aInstallation Notes with the motor 7.Warranty: Motor's warranty is two years, according to the size of the battery capacity, Batteri's warranty is a year and a half to 2 years, other accessories such as controllers, meters and other components are 1 year. 8.Motor free resistance: The motor doesn't have part ofclutch, but the motor has clutch function. So turn off the power,there is no Magnetoresistance when cycling. Because there is noMagnetoresistance, and we set the corresponding LED 0 stalls, the design is more humane. So that riders has more fun when riding. Instruction: Our newly developed intelligent motor （110mm diameter）. The motor owns strong climbing ability and the reduction ratio has reached up to 1:13.5. The high integration structure reduces the installation space and line losses, which also make the assembly more convenient. And the motor is more powerful, more efficient. Its peak efficiency has reached more than 85%. Parameters:
